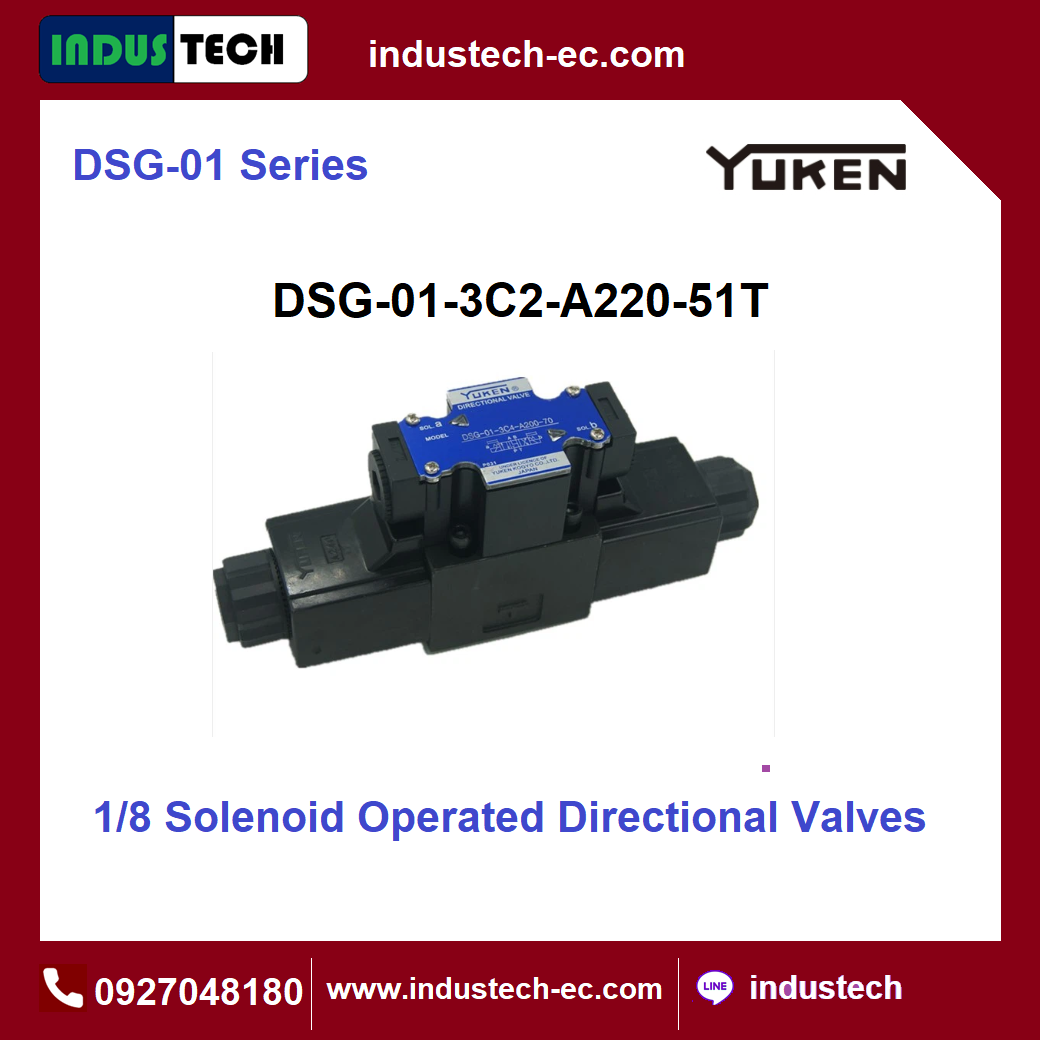

YUKEN Solenoid Valve รุุ่น DSG-01-3C2-A220-51T

YUKEN Solenoid Valve รุุ่น DSG-01-3C2-A220-51T
Valve Type : Standard Type DSG-01-3C2-A220-51T
Max. Flow L/min (U.S.GPM) : 100 (26.4)
Max. Operating Pressure MPa (PSI) : 35 (5080)
Max. T-Line Back Pressure MPa (PSI) : 21 (3050)
Max. Changeover Frequency Cycle/min {min–1} : 300 R Type Sol. Only 120
Mass kg (lbs.) : 1.85 (4.08)
Solenoid Ratings
Standard Type AC : A220
Frequency (Hz) : 50/60
Voltage (V) : Source Rating = 220 , Serviceable Range 160-220
Current & Power at Rated Voltage :
 Inrush (A) =1.21
 Holding (A) = 0.25
