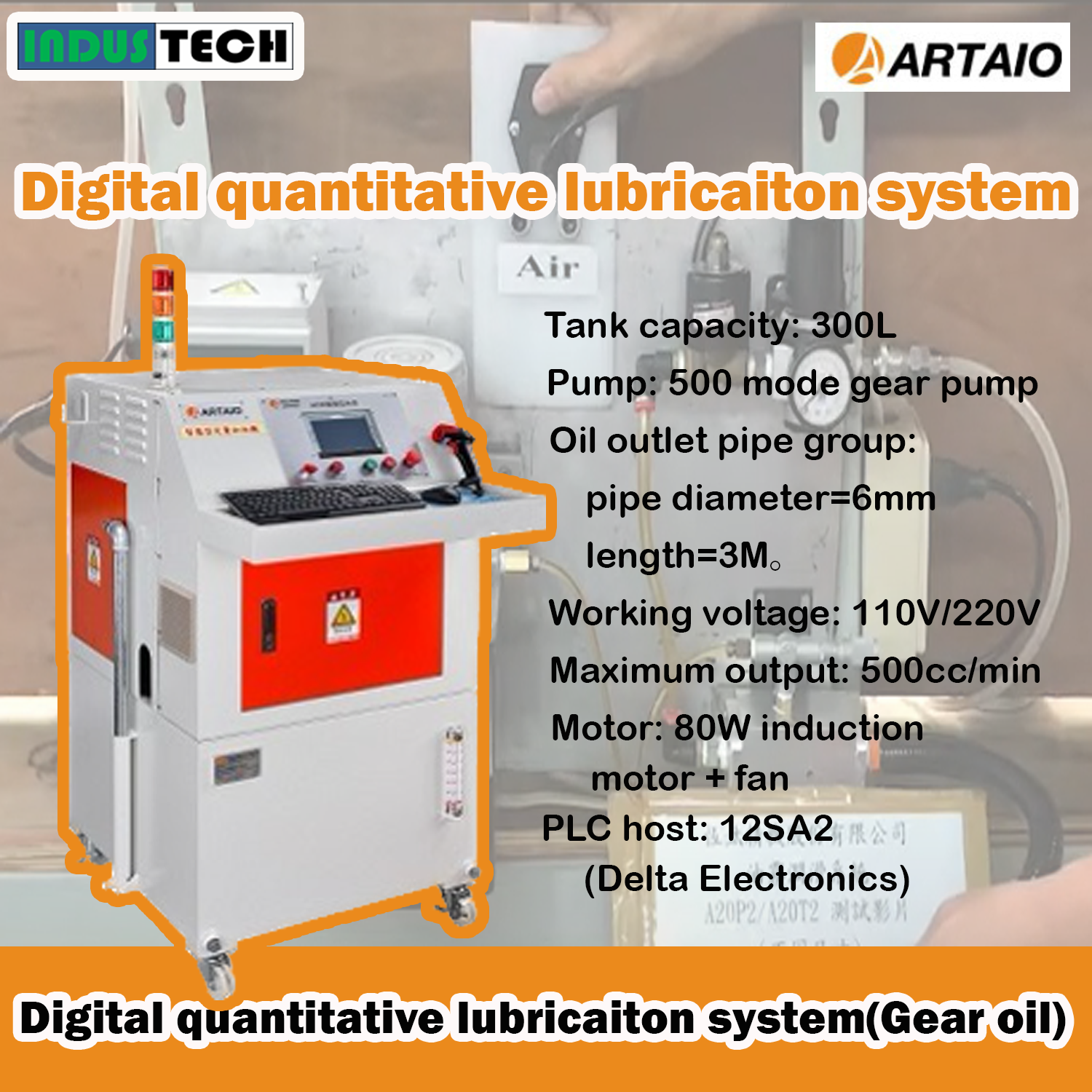

Artaio Digital quantitative lubricaiton system
รายละเอียดตามนี้ค่ะ
Digital quantitative lubricaiton system(Gear oil):
1.Machine size:Length:750mm*Width:800mm*Height:1400mm。
2.Tank capacity: 300L。
3.Maximum output: 500cc/min (under normal temperature)。
4.Oil injection tolerance specification: 300cc/1% error。
5.Oil extractor pumping device: pipe diameter=1" length=3M。
6.Tank liquid level detection: magnetic reed non-contact liquid level switch (A/B contact optional)。
7.Motor: 80W induction motor + fan。
8.Pump: 500 mode type gear pump。
9.Flowmeter: clamp type liquid flow sensor, diameter 1/4"。
10.Oil outlet pipe group: pipe diameter=6mm length=3M。
11.Industrial touch screen: 7-inch HDMI audio cable。
12.PLC host: 12SA2 (Delta Electronics)。
13.PC host: CUBISM NJSL-009TW。
14.Working voltage: 110V/220V optional。
15.Warning three-color light: green light. yellow light. red light。
16.QR code scanner: sensor=640x480 COMS。
17.MES system connection communication。
